24 Channels HF RFID Fixed Reader , High Power RFID Reader For Bookshlef Inventory Management

Product Introduction:

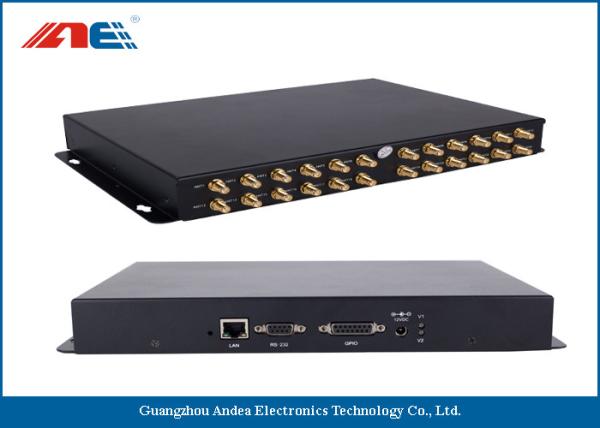

Andea HF high power RFID reader RD5124 is designed upon fully self-intellectual property which owns high sensitivity and fast anti-collision algorithm. For its perfect anti-collision algorithm, there is no problem for it to read a large quantity of tags in on time. There are 24 SMA interface of this reader that can connect with 24 Pieces antenna together. The default power is 4W and it is already suitable many positions, but for some special application, the character of its reading power from 1W to 8W is configurable, the higher power will be much more helpful to read the tags quickly and exactly.

Product Features:

• The operating frequency is 13.56MHz in accordance with ISO15693 and ISO18000-3M1 protocols
• RF Power is configurable from 1W to 8W
• There are 24 antenna interfaces linked with antenna impedance at 50Ω
• There are many different communication interface for choice: RS232 / RS485 and Ethernet
• Due to its anti-collision algorithm, its reading speed is up to 50pcs per second, more than 300pcs tags can be read on
• Effective reading distance is up to 90cm when using standard antenna and tag
• There is one I/O: 1 Relay /1 MOS for this reader
• It supports both host and scan work mode through software setting
• EMI Detection is the featured function to find out if there is interference surrounding

Product Application:

HF high power RFID readers from Andea Electronics can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance, access control, anti-counterfeit, jewelry management, self-service of laundry and industrial process control.
